Voltage: AC 240V, 50Hz
Max.: 150W LED lights( Max. 8 lights) or
1000W incandescent or
300W fluorscent
360° detection angle, detection radius 3m
Hole Cutout: Ø40 mm- Ø45 mm
Dimensions: 71H* Ø54(facial diameter) mm
With override function
Not suitable to work with a dimmer

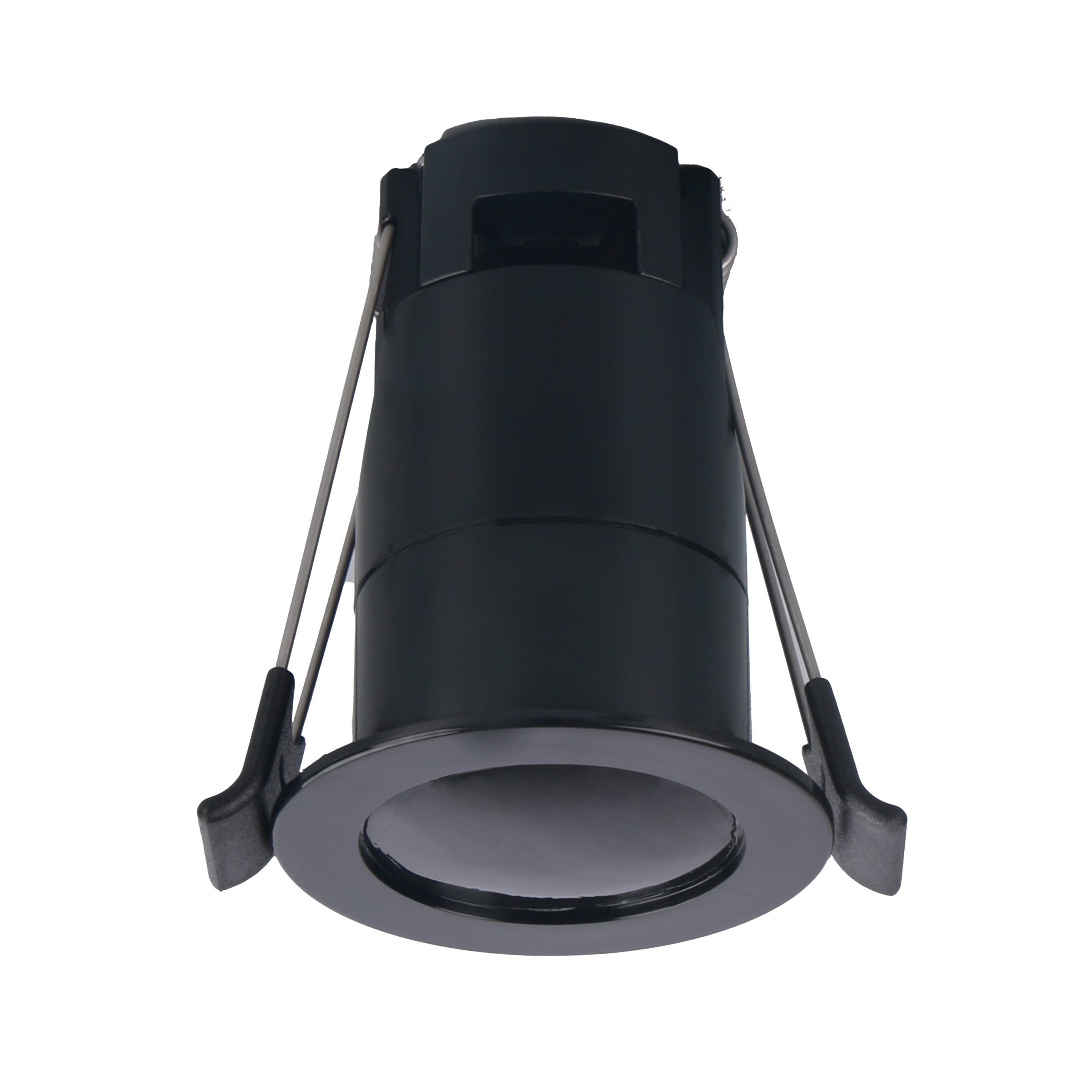

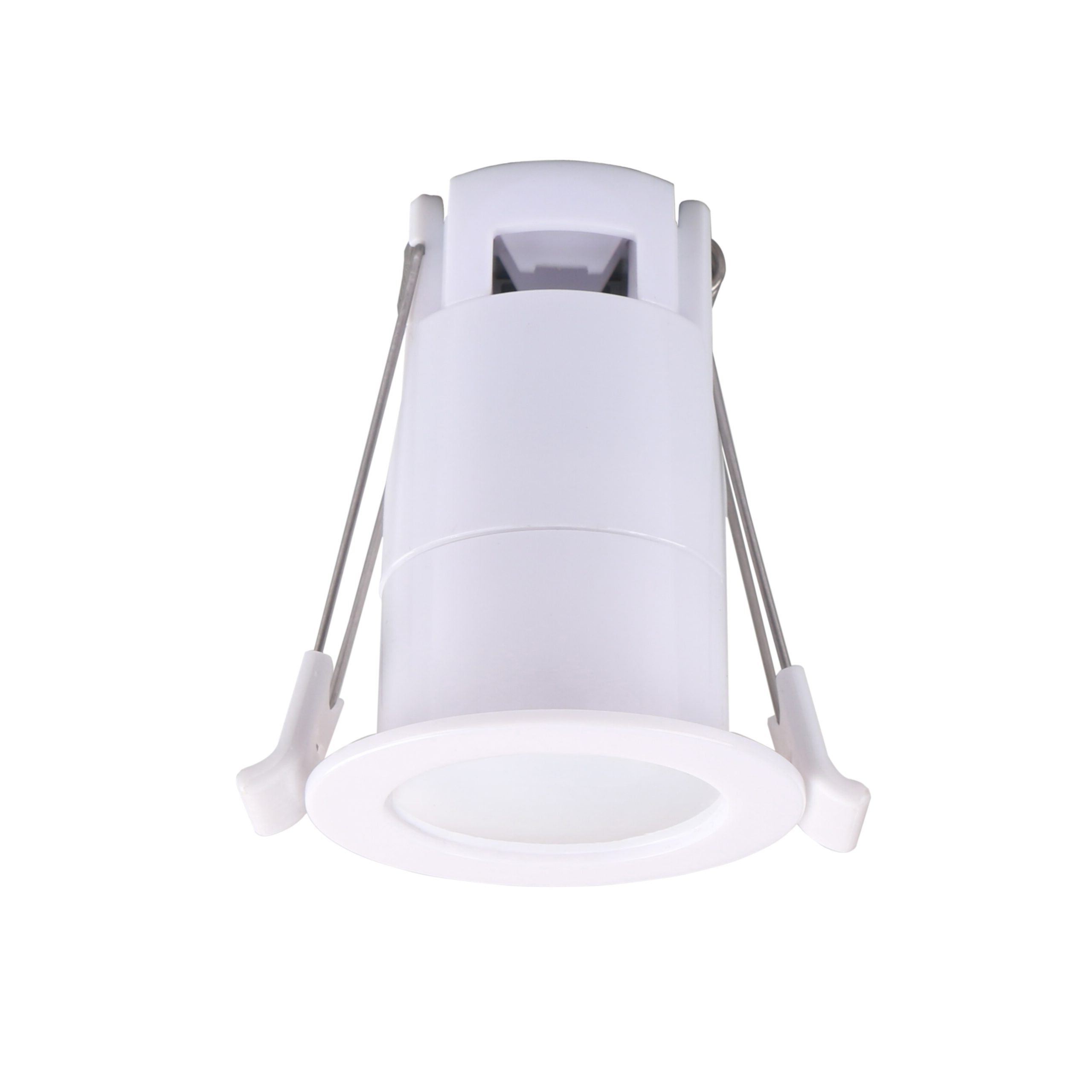

PHL4208 PIR mini sensor
Roll over image to zoom in
PHL4208 PIR mini sensor
Voltage: AC 240V, 50Hz
Max.: 150W LED lights( Max. 8 lights) or
1000W incandescent or
300W fluorscent
360° detection angle, detection radius 3m
Hole Cutout: Ø40 mm- Ø45 mm
Dimensions: 71H* Ø54(facial diameter) mm
With override function
Not suitable to work with a dimmer
Additional information
| Model No. | PHL4208 |
|---|---|
| Input | 220-240V, 50-60Hz |
| Sensor Type | PIR |
| Max | 150W LED lights( Max. 8 lights) or 1000W incandescent or 300W fluorscent |
| Rating | IP20 |
| Cut-out | Ø40 mm- Ø45 mm |
| Fitting Colour | Black and White |
| Detection Area | 360° detection angle, detection radius 3m |
| Duration Time | 10+/-5 seconds to 4+/-1 minutes adjustable |
| Lux Control | Daylight and night adjustable |
| Sensitive Adjustable | No |
| Override Function | Yes |
